As someone who works with database every single day, it is very useful to understand the four fundamentals that build the database system: ACID.

Recently, I studied about these critical things from this very easy to understand course and also other resources, especially from PostgreSQL documentation and MySQL documentation. Practicing and summarizing what I learned in writing helps me remember and understand better.

ACID stands for Atomicity, Consistency, Isolation and Durability. We may engage with these concepts often in our daily work without realizing it. But before going further, let’s start by discussing the term of Transaction.

Transaction

Transaction can be defined as the collection of some queries that run as a single unit of work. This is always handled by the database, whether we explicitly define it in our query or not. It is very crucial to use transaction in our queries, in case our server crashes in the middle of process, as transaction can ensure data persistence and consistency.

As for part of the transaction:

• Transaction BEGIN: Indicates the start of transaction that includes multiple queries.
• Transaction COMMIT: Commit all the queries in a transaction, write all the changes to disk.
• Transaction ROLLBACK: if something doesn’t work or goes wrong in the middle of transaction, then all processes can be undone, return to the previous state.

Let’s say we have 3 tables: users, products, transactions:

users

products

transactions

What to do when user named Jhon buys 2 books?

The typical steps are:

1. Check if the quantity is sufficient.
2. Insert the transaction.
3. Update the product quantity.

BEGIN

    SELECT * from products where id = 2 and quantity >= 2

    INSERT INTO transactions(user_id, product_id, quantity, total) values(1, 2, 2, 2*2000)

    UPDATE products set quantity = quantity - 2 where id = 2;

COMMIT

What if, during a process where the products table is being updated, the database suddenly crashes? When it restarts, could the data become inconsistent, because the new data have been already inserted into transactions, but products table failed to update? This is why we need Atomicity in such case.

Atomicity

Atomicity means that all queries within a transaction are treated as a single atom that cannot be split. Regardless of the number of queries —whether it’s one or a hundred— all of them must succeed. And if any one query fails, all previously successful queries must rollback.

So, if we look at the example above, if query to update products table fails before commiting, even the insert query is successful, all processes must be rolled back.

Let’s jump into practice. I already have 2 docker containers run in my local computer. You can follow this setup:

or simply try this command in the terminal:

docker run --name postgres_acid -d -e POSTGRES_PASSWORD=postgres -e POSTGRES_DB=db -e POSTGRES_USER=user postgres:latest

docker run --name mysql_acid -d -e MYSQL_PASSWORD=password -e MYSQL_DATABASE=db -e MYSQL_USER=user -e MYSQL_ROOT_PASSWORD=password mysql:latest

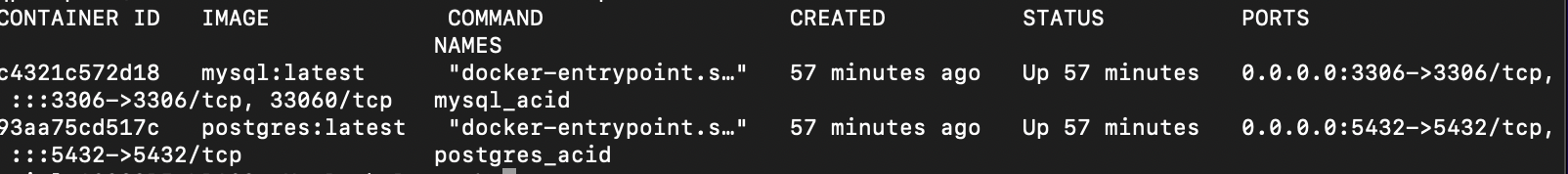

Here is my docker ps result:

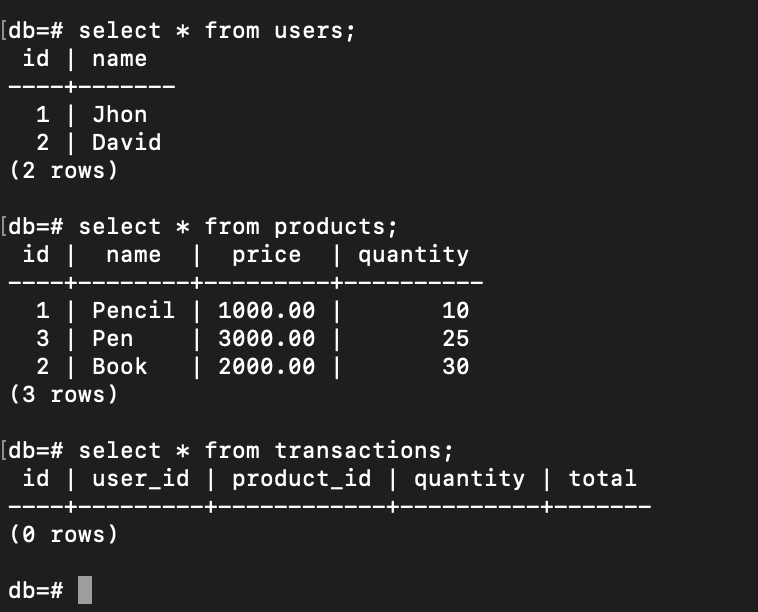

I already inserted data in PostgreSQL database as in the example, and if we go inside container, here it looks like:

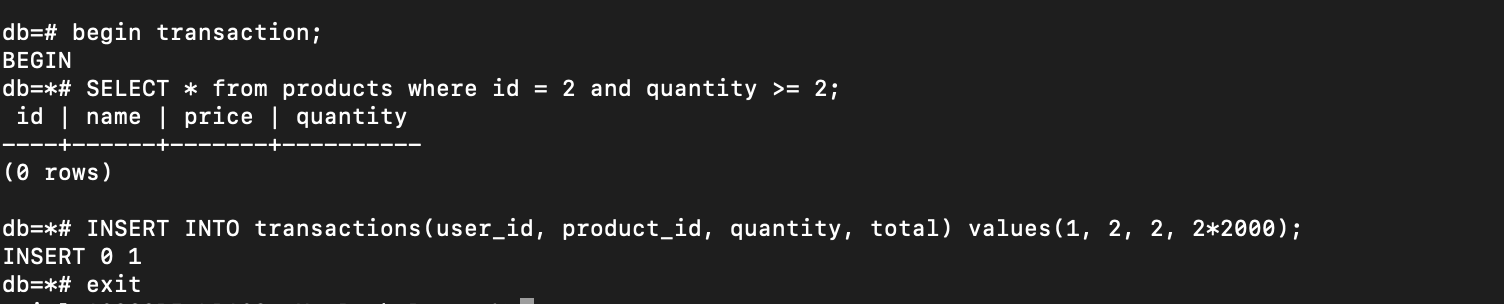

Now let’s make a new transaction where Jhon buys 2 books. But before I update the products table, I quit the database container:

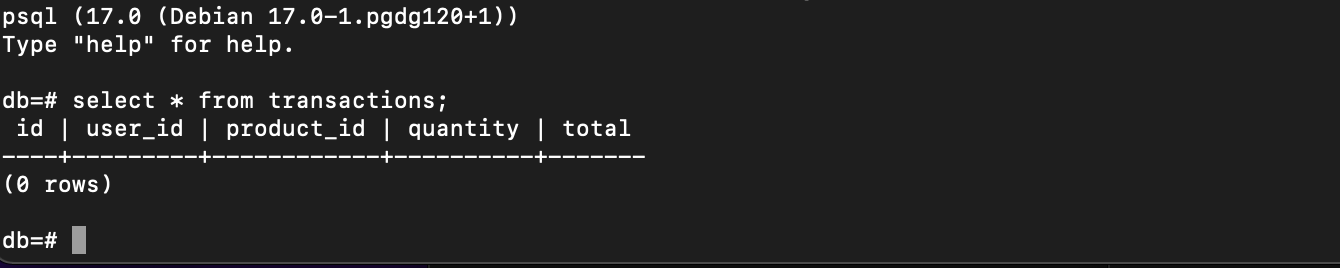

Then, I go into the container again to check if there is any new row in transactions table. But there’s still nothing:

That’s what Atomicity transaction means, from begin to commit is a single atom. Even though I have already inserted data into the transactions table, it hasn’t been committed yet. So, when a thing goes wrong with the database, the entire process should rollback.

Isolation

Each DBMS implements isolation level differently. But to understand Isolation better, consider a scenario where a hundred concurrent users are trying to read or to write to the same table in database. In such cases, could one transaction be affected by others? Or could we ensure that our transaction remains isolated, even with new data being inserted or modified? This is where the concept of isolation becomes crucial.

There are some Read Phenomena and Isolation Levels that we need to know:

Read Phenomena

Here are 4 read phenomena that may happen in an isolation transaction:

Dirty Reads

This phenomena occurs when a transaction reads data that has been inserted or modified by another concurrent transaction, even if that data is not yet successfully committed.

This is just scary, as it may lead to incorrect and inconsistent data when rollback happens.

Non-Repeatable Reads

Second phenomena is Non-Repeatable Reads. This occurs when a transaction reads the specific row on repeat, but then the value changes as other committed transaction modified that specific row before we try to re-read within the same transaction.

Phantom Reads

Phantom Reads happens when a transaction reads the set of rows, but before we attempt to read them again, the new rows have been added or the existing rows have been deleted by other committed transaction, so the result of the set of rows changed.

Lost Updates

This phenomena occurs when we attempt to write something to a table, but upon selecting the data we have already modified, we lost our changes because other transaction also modified the same table.

Isolation Levels

There are 5 isolation levels discussed in the course. But basically there are four standard transaction isolation levels without Snapshot level:

Read Uncommitted

As the name suggests, a transaction at this level can read all data that has not yet been committed by other transactions. In result, Read Uncommitted allows Dirty Reads to occur.

Read Committed

A transaction can only read data from other transactions that have been successfully committed.

Repeatable Read

At this level, a transaction ensures that if a query is executed multiple times, it will always return the same data, even though there are many committed data from other transactions.

Snapshot

In PostgreSQL, it’s similar to Repeatable Read, like a snapshot version of our database at that moment. We can only read the changes that have been committed up to the time of start of transaction. But on this level, Phantom Read will not happen.

Serializable

At this isolation level, all the transactions will be serialized as if they are executed in order.

Let’s try one by one both in PostgreSQL and MYSQL.

Read Uncommitted Example

PostgreSQL - Read Uncommitted

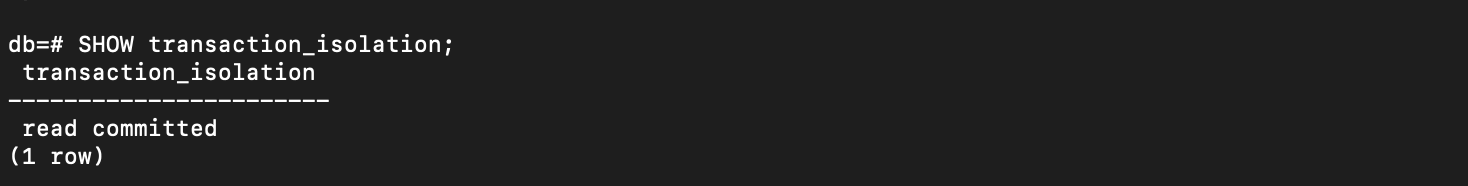

First, let’s check what kind of isolation level in our PostgreSQL database:

It’s on read committed level.

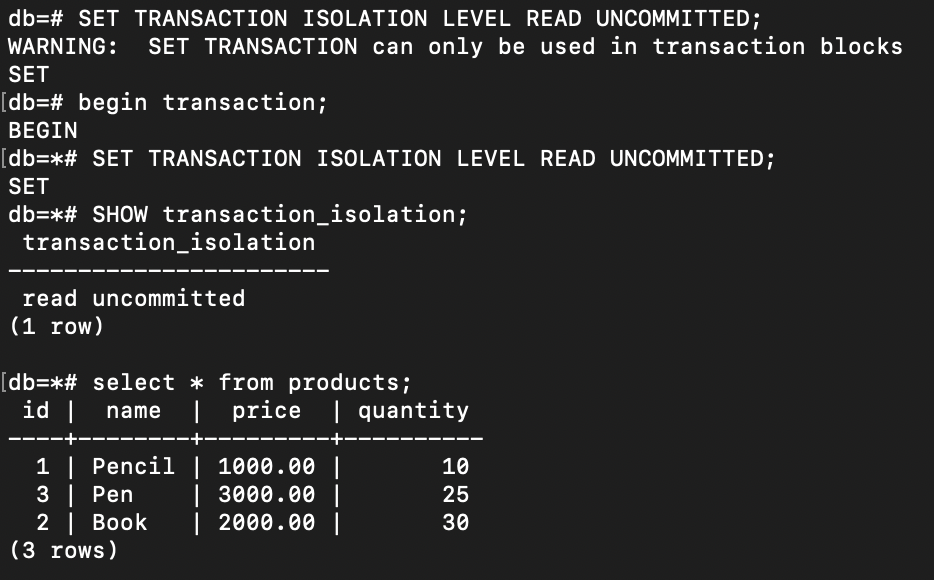

Now, let’s change the isolation mode refers to PostgreSQL documentation about transaction mode:

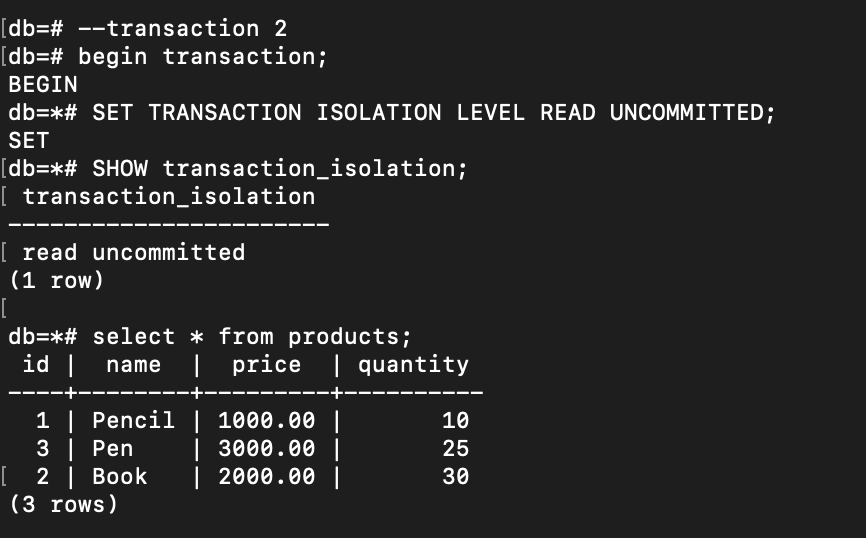

During the transaction, I executed a query to select all from the product list. After that, I initiated a new READ UNCOMMITTED transaction in another terminal (actually, it has not to be at the same isolation level. It can be only transaction 2 that is READ UNCOMMITTED and transaction 1 can use the default isolation).

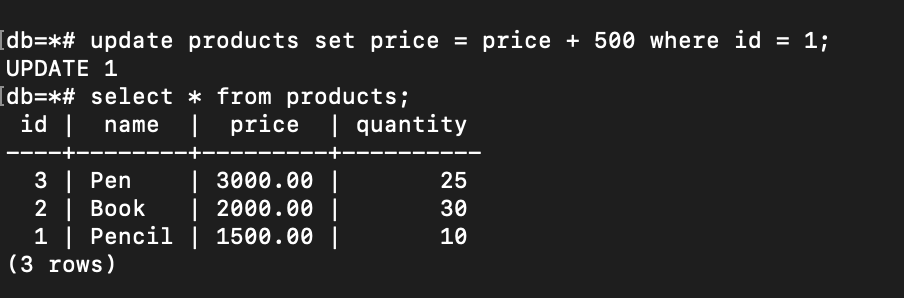

Next, I return to the transaction 1 and executed an update query on the price of Pencil:

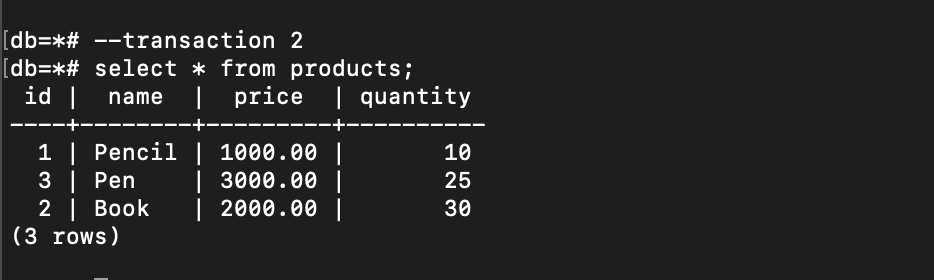

The price has changed. But will it be the same in the transaction 2 even it’s not fully committed?

The price of pencil remains unchanged!!! So, read uncommitted level doesn’t occur in this case. WHY?

If we check again to PostgreSQL documentation, it’s already stated there : In PostgreSQL, you can request any of the four standard transaction isolation levels, but internally only three distinct isolation levels are implemented, i.e., PostgreSQL's Read Uncommitted mode behaves like Read Committed.

Now, let’s try the same steps in MySQL:

MySQL - Read Uncommitted

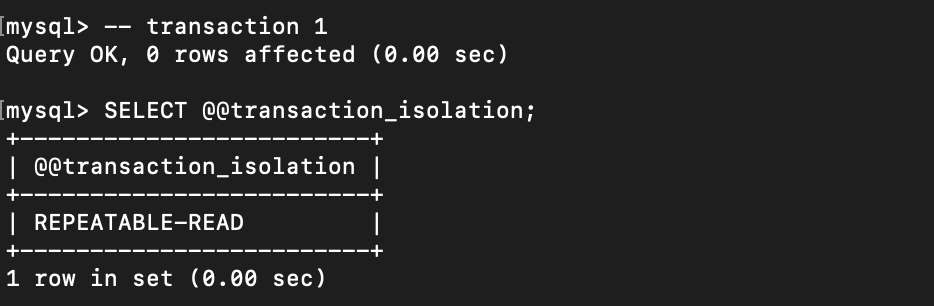

Let’s check on what level we currently are:

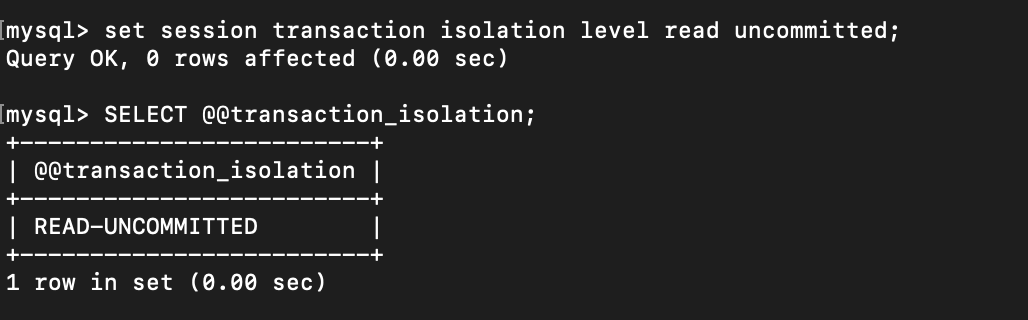

We are on Repeatable Read isolation level. And now let’s change the mode to Read Uncommitted

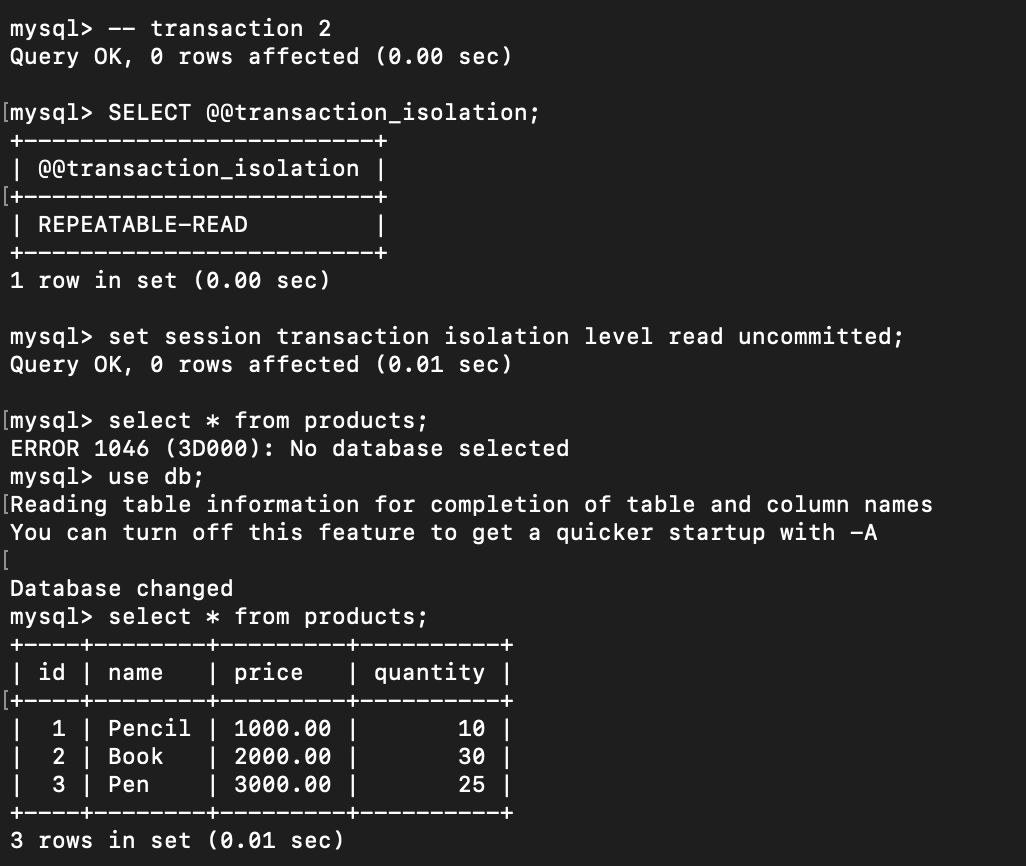

Do the same in other terminal for new transaction:

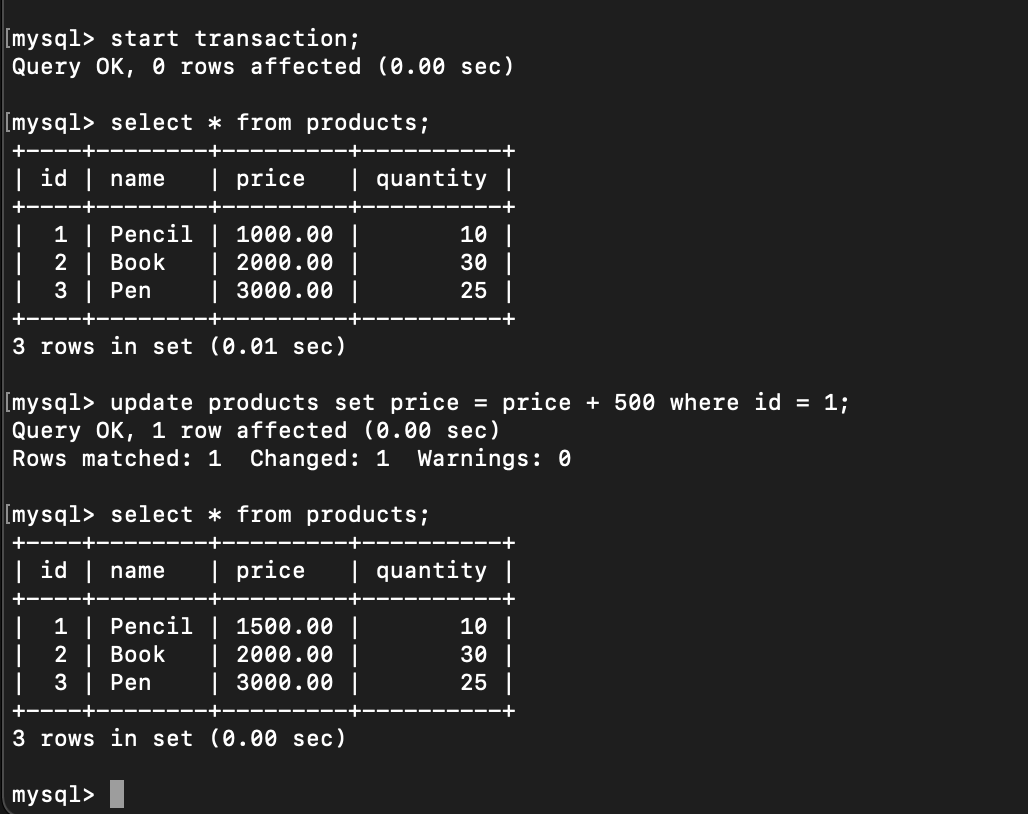

Execute update price of the pencil in transaction 1:

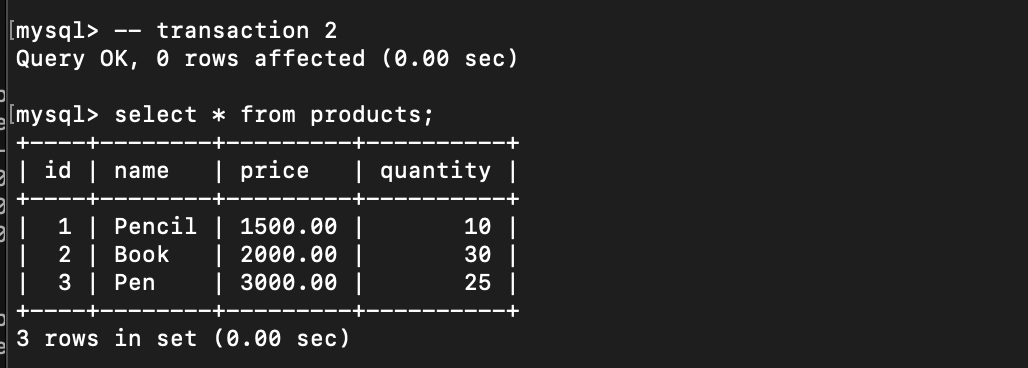

Let’s return to transaction 2 The price of pencil has already changed to 1,500 even I’m not committed yet the transaction 1.

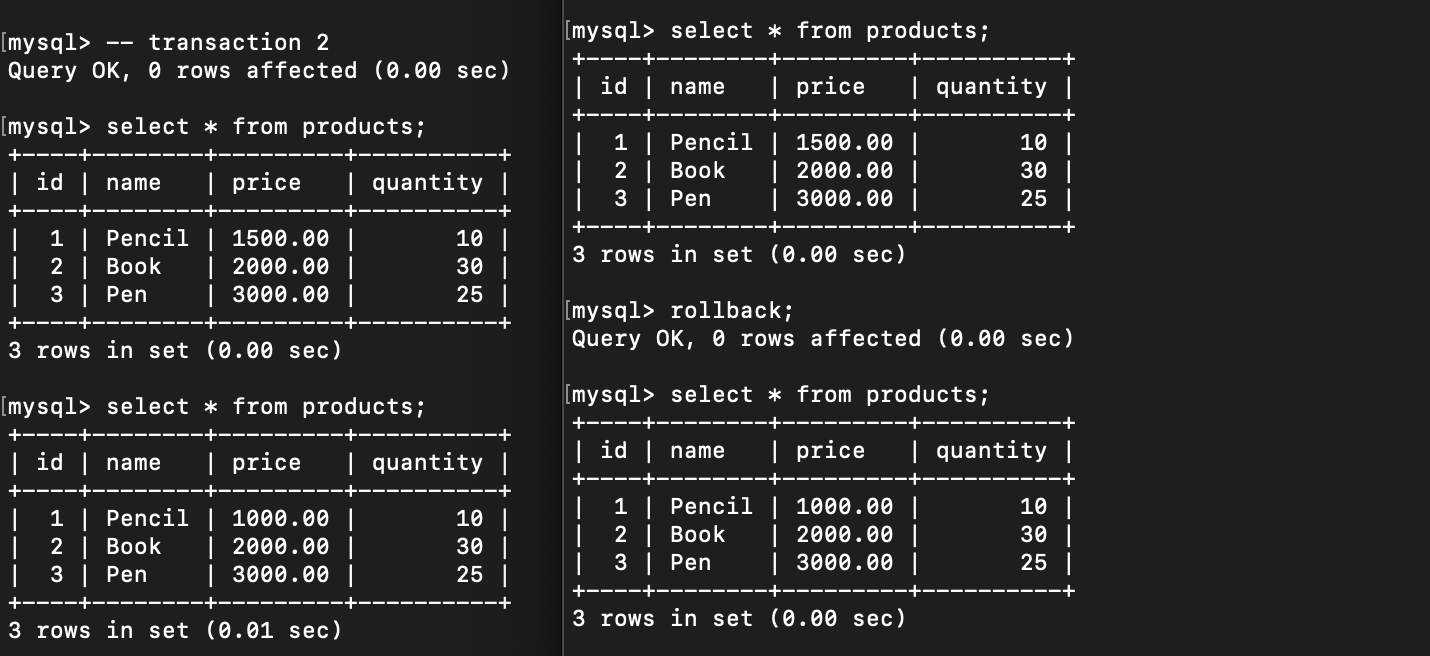

How if I do rollback in transaction 1 and execute select products query again in transaction 2:

It became inconsistent😱😱😱, because the data go back to previous state. Isn’t this Dirty Reads phenomena scary?!

There are also some DBMS support the READ UNCOMMITTED except MySQL, but I haven’t tried it one by one.

Read Committed Example

To check this isolation level, let’s do these steps:

1. Change mode of isolation level to READ COMMITTED
2. Create 2 concurrent transactions
3. Do update in transaction 1
4. Execute select in both transaction 1 and transaction 2
5. Do commit in transaction 1
6. Execute select again in both transaction and see the difference.

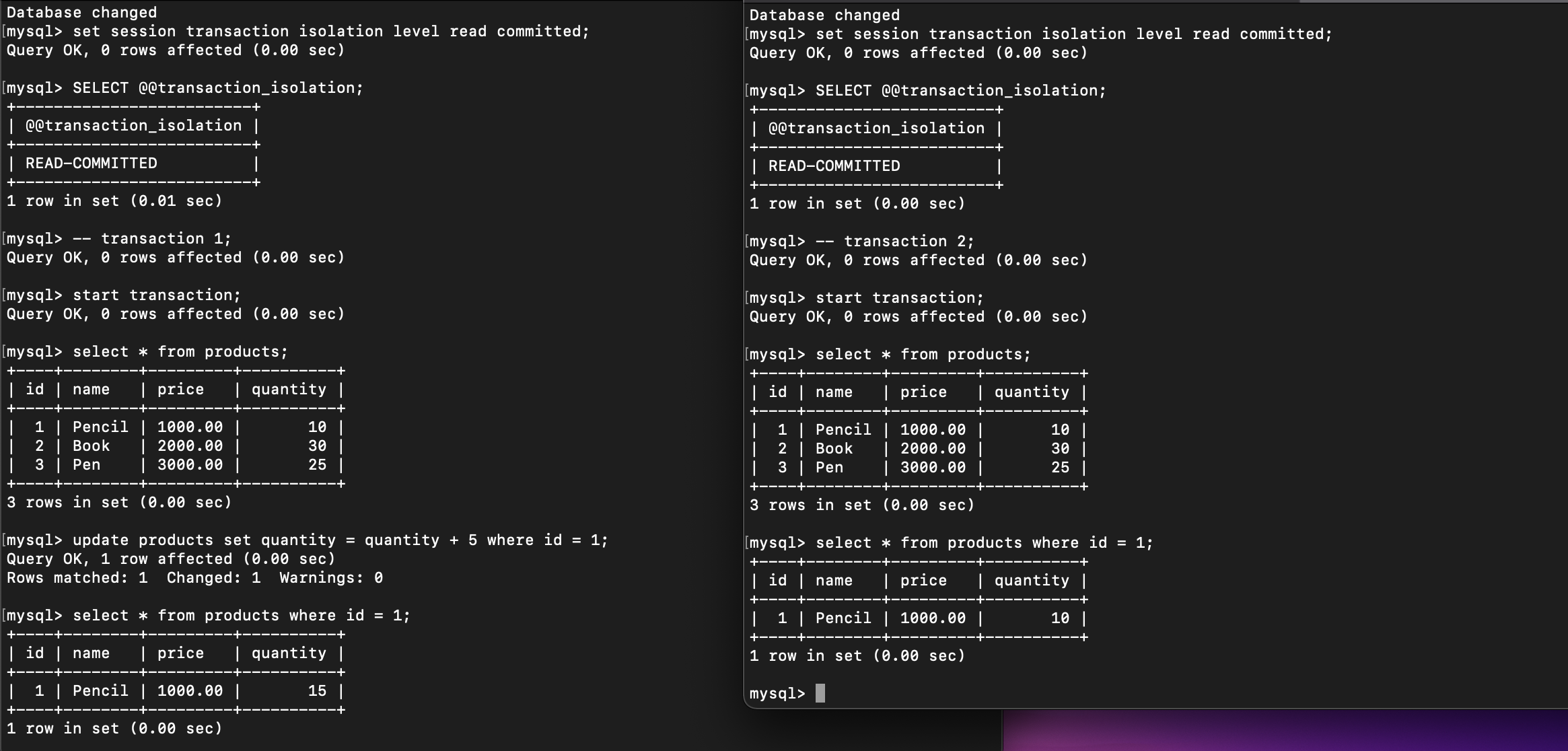

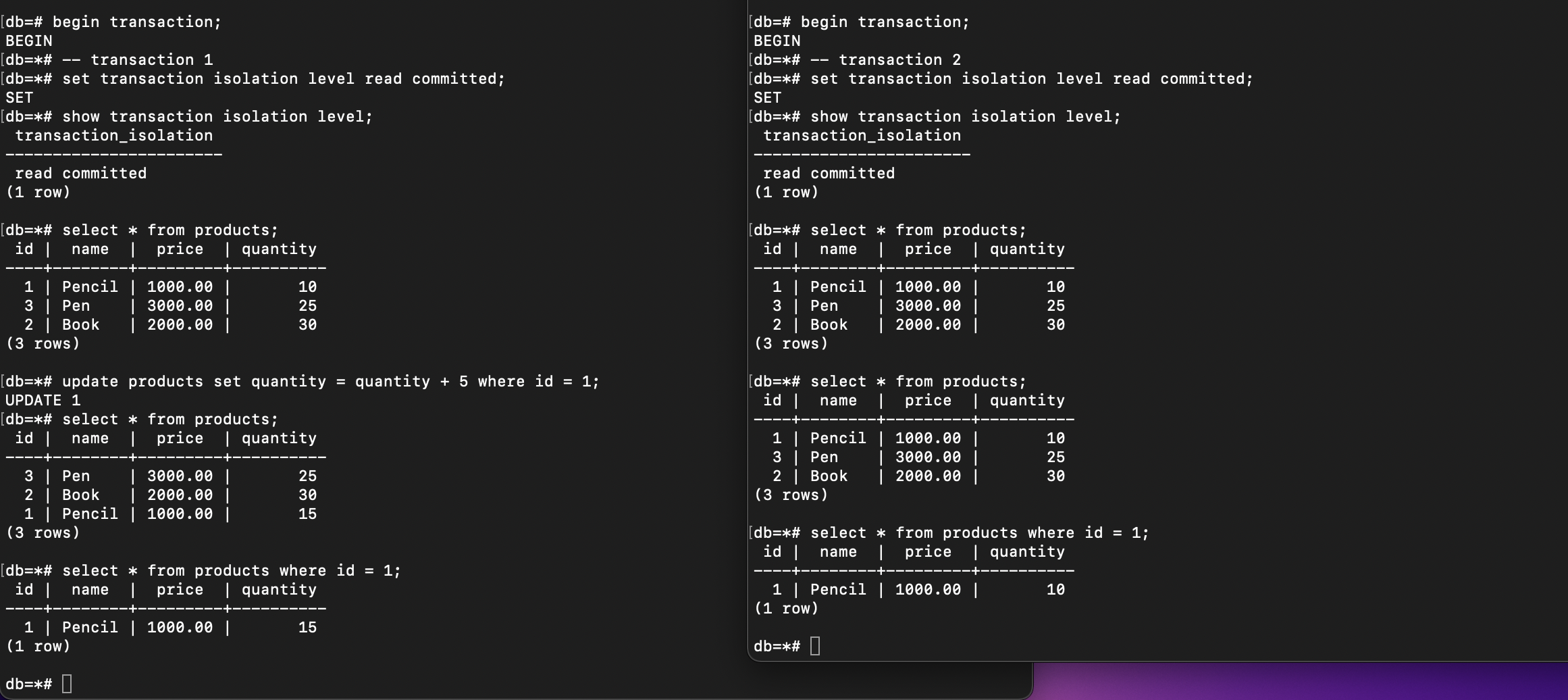

This is the result until step 4. The data has not changed in transaction 2 both in PostgreSQL and MYSQL if the syntax COMMIT is not executed yet in transaction 1:

PostgreSQL

MySQL

So, the Read Committed level prevents Dirt Reads phenomena to happen. But how about Non-Repeatable Reads and Phantom Reads? Let’s continue the steps, commit transaction 1:

PostgreSQL

MySQL

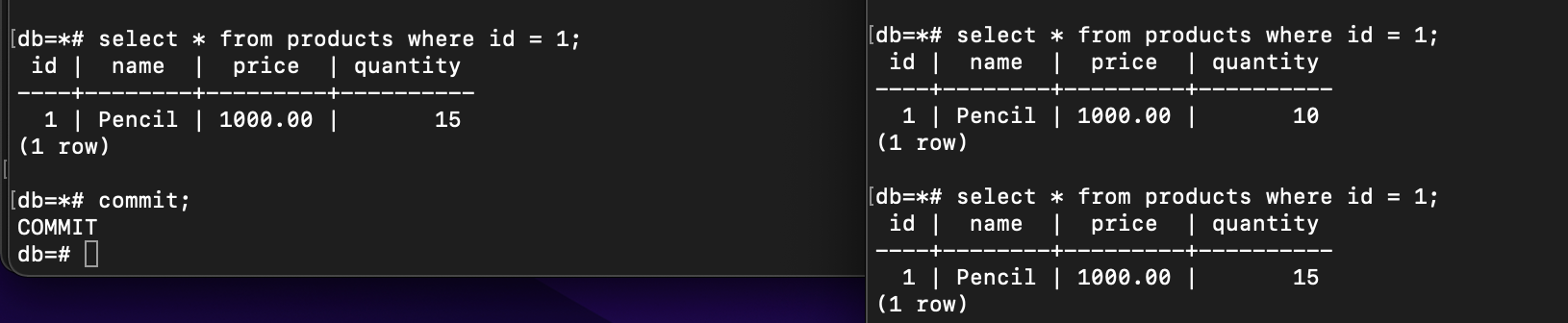

If we try to execute the same query as before, the data has already changed in transaction 2. That’s what we called as Non-Repeatable, as stated in PostgreSQL documentation that Non-Repeatable means A transaction re-reads data it has previously read and finds that data has been modified by another transaction (that committed since the initial read).

The difference is that Phantom Reads occurs when the result set of rows changes due to concurrent transactions, while Non-Repeatable Reads happens with specific rows that have been modified by other transactions.

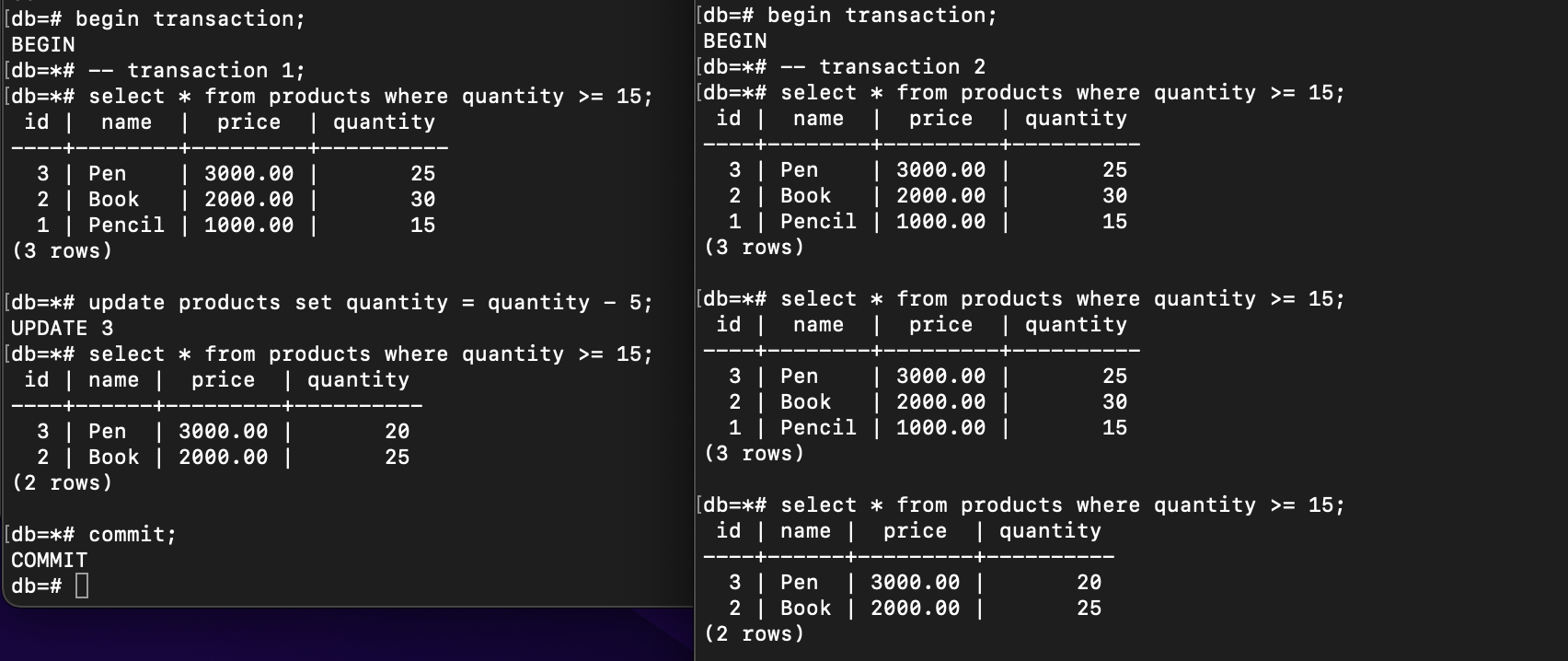

Before committing the transaction 1, the data that met the condition was 3 both in transaction 1 and 2. However, after committing it, the result set of rows changed to only 2 rows. That is Phantom Reads.

Repeatable Reads Example

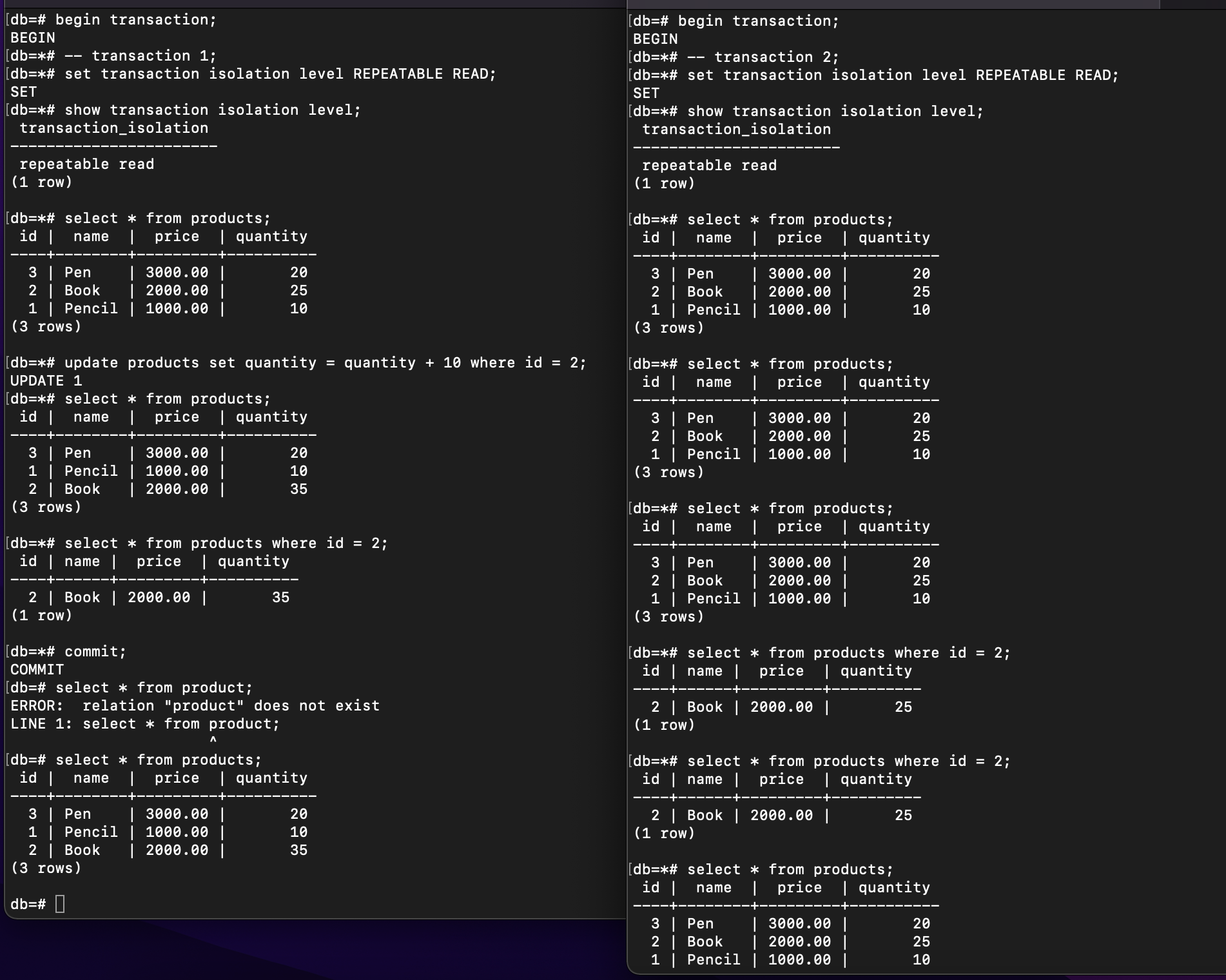

Do the same steps, but change to REPEATABLE READS mode.

No matter how many times I re-read the same table in transaction 2 after committing transaction 1, the value doesn’t change, it’s not affected at all, it’s fully isolated from other concurrent transactions. That is Repeatable Reads.

But, what happen if I execute update of transactions in circular dependency? Transaction 1 updates data a to data b, while Transaction 2 modifies data b to data a. Let’s say I have new table named keys with the column id and name. And I do transaction in Repeatable Reads isolation level.

Even though there is a change in position, the returned set of rows remains the same: Each count of Key a and Key b is 2. However, this is not as expected because we want it as serialization transaction.

Now, let’s try Serializable to check if this thing could be prevented:

Serializable Example

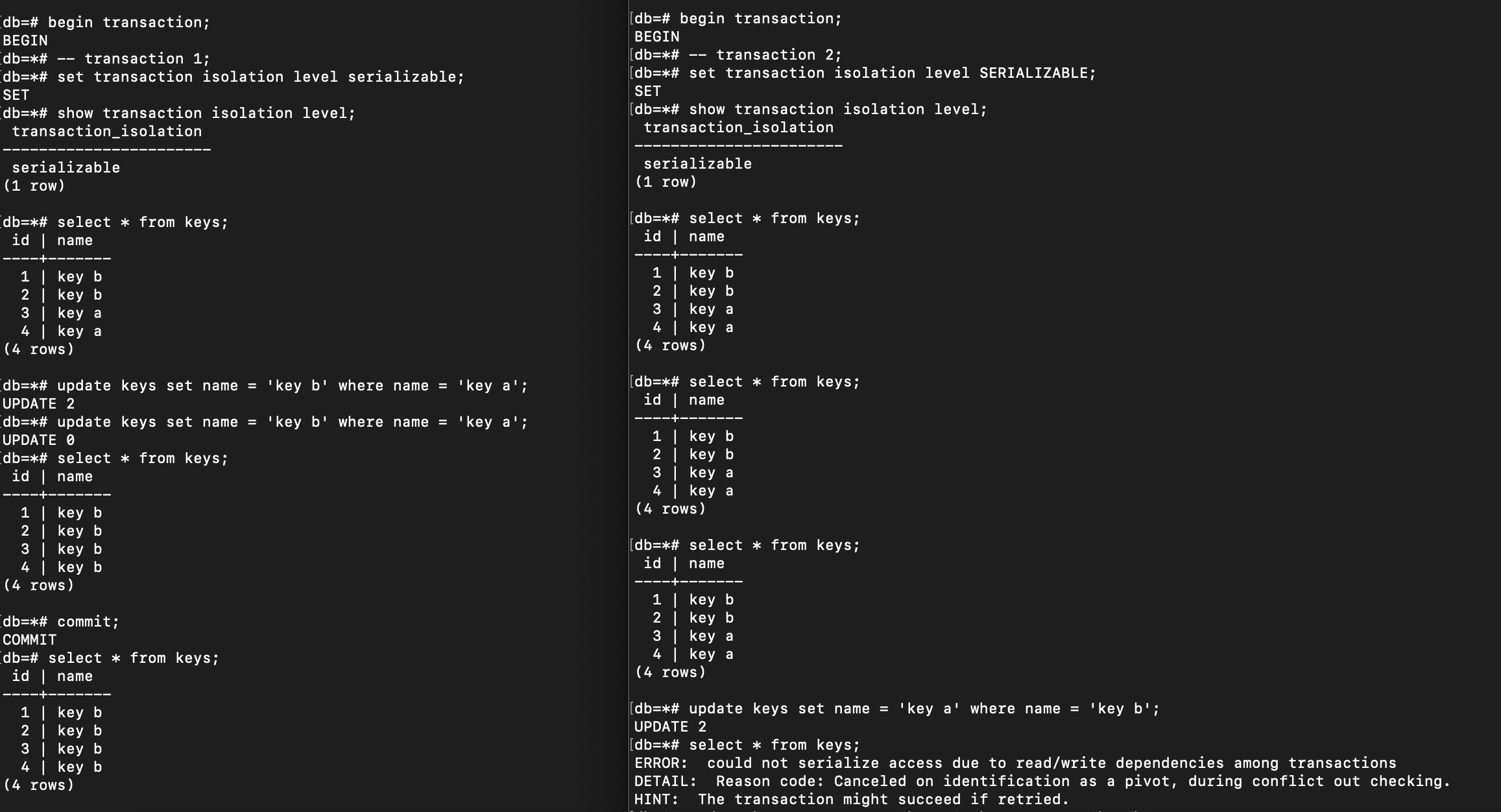

Change isolation level to SERIALIZABLE, and do the same thing as before:

PostgreSQL cannot let us to commit such thing on the Serializable level with the reason: Canceled on identification as a pivot, during conflict out checking. If we still want to execute that, we need to retry the transaction again. That’s how Serializable works.

The following table summarizes the impact of transaction isolation levels on read phenomena:

Consistency

Consistency can be defined in 2 definition:

Consistency in Data

Consistency in data can be defined by the user who designs the data model and schema. It includes defining the constraint, rules and also relationship between tables. For example, if a column in one table becomes a foreign key in another table and is modified, then that referred foreign key column must also be updated (referential integrity).

Consistency in Reads

Consistency in reads means that if a column is modified in one transaction, the changes are immediately visible to other transactions. We always get the recent changes, no matter how many transactions are being committed.

Durability

Durability in transaction means that every transaction we execute in database is always durable even we lost power or even our database suddenly crashes. If we write something on disk, the data will always be there.
